Interbus Curly Cords

We are now able to produce INTERBUS curly cords.
Remote Bus Cable (RBC)

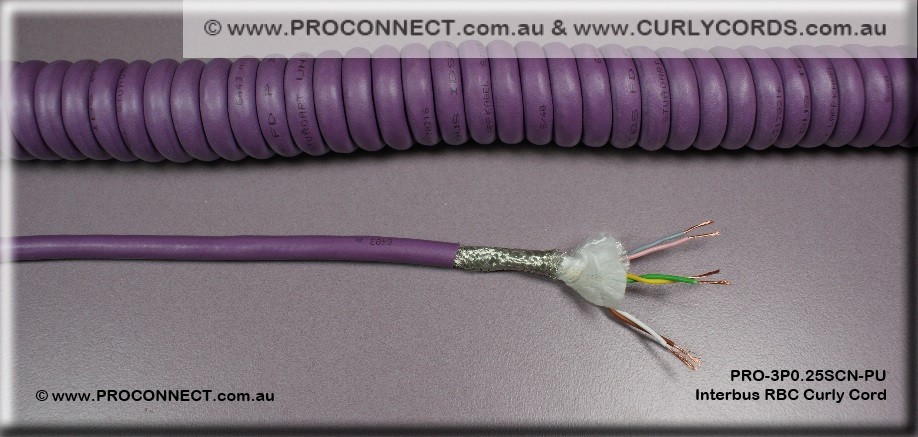

Suitable for highly flexible applications frequently moved machine parts instead of using power chains or cable tracks.PRO-3P0.25SCN-PU-1a Interbus Cable

These cords can of course be used for a variety of other application.

Construction:

  • 3 twisted pairs
  • 100 Ohm Characteristic Impedance
  • 60 nF/km mutual capacitance at 800Hz
  • 0.25mm²
  • Braid Screen
  • Polyurethane sheath 7.9mm nominal



Coil Lengths include:

  • 300mm
  • 500mm
  • 1000mm
  • 1200mm
  • 1300mm (May be in stock. Please email to confirm)
  • 1500mm
  • 1800mm
  • Custom coil lengths made to order (MOQ’s apply)

Straight tail length:

  • 150mm
  • Custom tails lengths made to order (MOQ’s apply)

Note: Unless specifically indicated, all curly cords are supplied UNTERMINATED.

Remember: we have an extensive range of connectors, and wiring accessories.
Please ask us about these as well.

2 thoughts on “Interbus Curly Cords

  1. Hi,
    I use a 6 pin din connector with my motorbike comm system and was wondering what the posted price was for 4 x 500mm lengths of 3 twisted pair wire curly cords posted Fountaindale on the NSW Central Coast.

    Looking forward to your response.

    Regards Warwick

    1. Hi Warwick,
      Thanks for your comment/inquiry.
      I would not consider these particular Interbus cords appropriate for motorbike comms systems.
      I’ll send you an email shortly.
      All the best…
      Paul.,
