Power and Control Curly Cords – PUR Orange

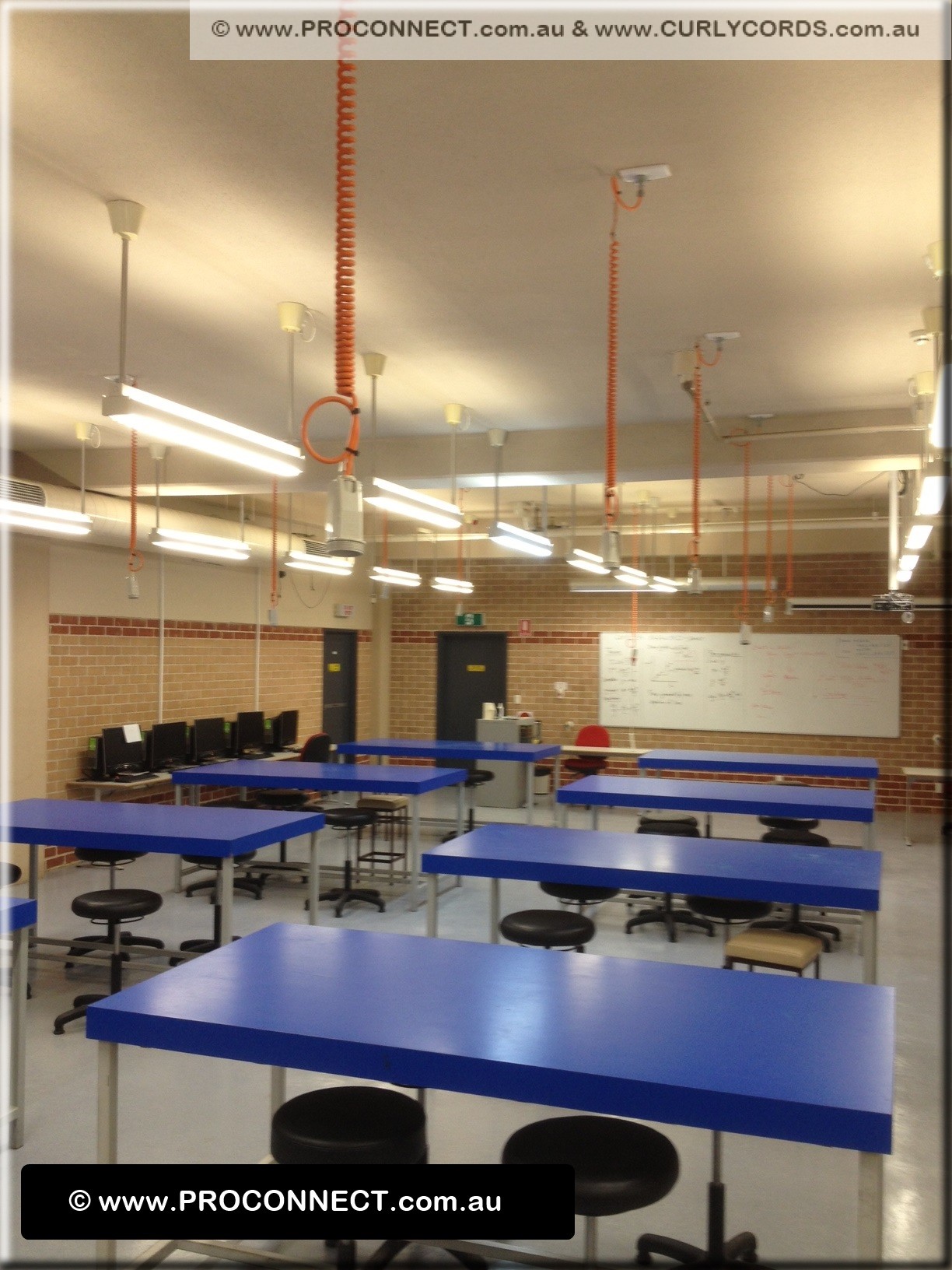

Client install of PRO-3G1.5ORPUR-500-500  500mm coil with 500mm tails.
Client install of PRO-3G1.5ORPUR-500-500
(3G1.5mm² 500mm coil with 500mm tails).
Client install of PRO-3G1.5ORPUR-500-500  500mm coil with 500mm tails.
Client install of PRO-3G1.5ORPUR-500-500
(3G1.5mm² 500mm coil with 500mm tails).

Our special Self Retracting Power Cords are made with industrial grade Orange POLYURETHANE  sheathed, EPR Rubber insulated cable.
These cords are used for a variety for power and/or control uses.

Theses special cords are:
Halogen Free, Water Resistant, UV Stable, Extreme Mechanical Resistance: Cut & Abrasion Resistant, and has Good Chemical resistance (Oils, Grease and Fuels.)

When operated in the horizontal orientation, these cords are deemed to be `Self Retracting`

When operated in a vertical orientation, the weight of the cord plus the weight of the outlet or other fixture will naturally make the cord slightly extend.PRO-3G0_75-ORPURa.jpg
This range exhibits Very high retractability or “Spring”

Number of cores include:

  • 3 Core (including 1x Green/Yellow Earth)
  • 4 Core (including 1x Green/Yellow Earth)
  • 5 Core (including 1x Green/Yellow Earth)

Core Sizes include:

  • 0.75mm²
  • 1mm²
  • 1.5mm²PRO-5G2.5ORPURa.jpg
  • 2.5mm²

Coil Lengths include:

  • 300mm
  • 500mm
  • 1000mm
  • 1200mm
  • 1500mm
  • 1800mm
  • Custom coil lengths made to order (MOQ’s apply)

Straight tail length:

  • 150mm
  • Custom tails lengths made to order (MOQ’s apply)

Note: Unless specifically indicated, all curly cords PRO-3G2_5-ORPURa.jpgare supplied UNTERMINATED.

Ask us about outlets as well.

These cords are rated to extend some Three to Four times the compressed length ie a 4:1 Ratio.

And some specific configurations can extend much further. Some up to 6:1 Ratio!

Note: Because of the large number of possible configurations available, only a small selection of these cords are usually available from stock. Most configurations and larger quantities are made to order.

4 thoughts on “Power and Control Curly Cords – PUR Orange

  1. Hi, I need one  300mm length, .75mm sqd core orange cable to provide 240V power for a cabinet drawer. The current load will be less than 5 amps. Are you able to supply me with one cable or do you have an outlet in Melbourne where I could get hold of one?

    Best regards

    John Jansen

    1. Hi John,

      1mm² is a standard core size for us. (0.75mm² not so much)

      I believe People would normally use the cheaper PVC cords for these. In that range the Orange is not normally stocked. We normally do the PVC mains flex cords in Black or White.

      We sell through a electrical wholesalers and resellers all over. We can also help you direct. We send our cords all over Oz and beyond every day.

      Keep in mind….these cords must be fitted by an electrician!

      I’ll email you a price next…

      Best regards

      Paul.

  2. Hi Paul,

    Can you pls give me a price for 18 lengths of 1500mm 1.5mm2 orange curly coed please?

    Delivered to Sydney.



    Thanks,

    Greg

    1. Hi Greg,

      Thanks for your inquiry. Happy to help with the cords.

      Would I be right thinking you want 3 core (2 core plus earth) ?

      I assume that 1500mm, is the compressed length? (not extended?)

      Is it for a company/project?



      Best regards

      Paul.
